Battery Positive and Negative Detection

1. Negative Software Processing

Solution

By grasping the diameter of the insulating material, both Judging the presence or absence of insulating materials can also judge the insulation degree of material defect.

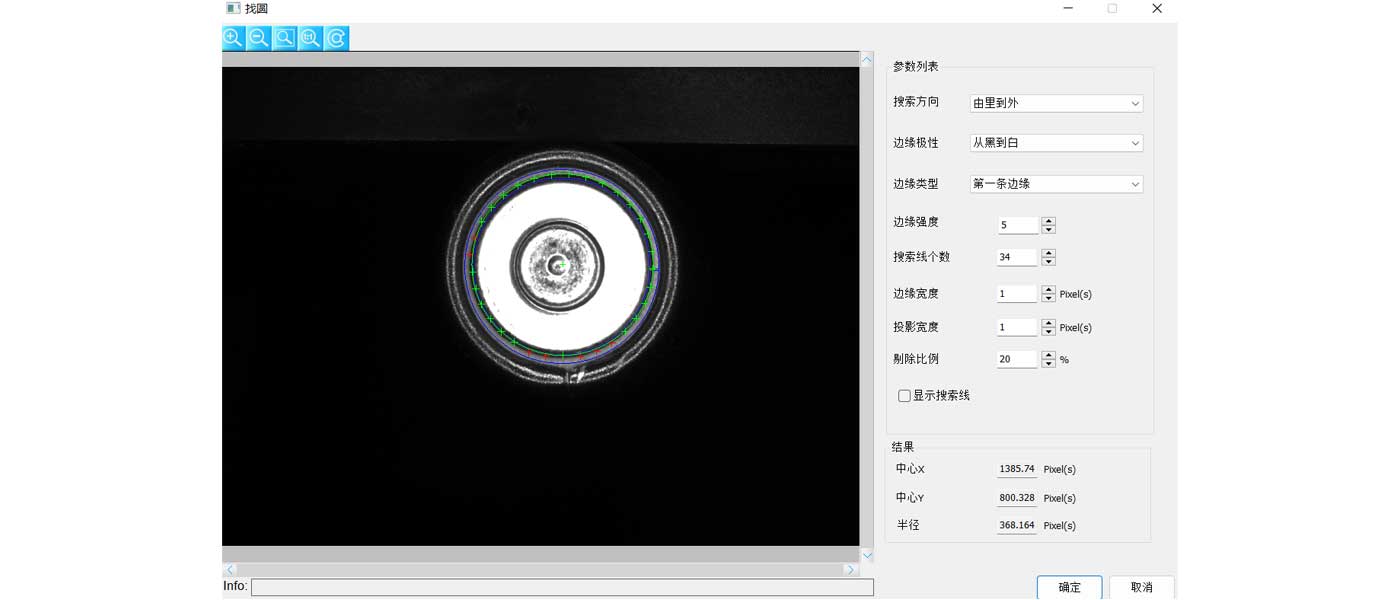

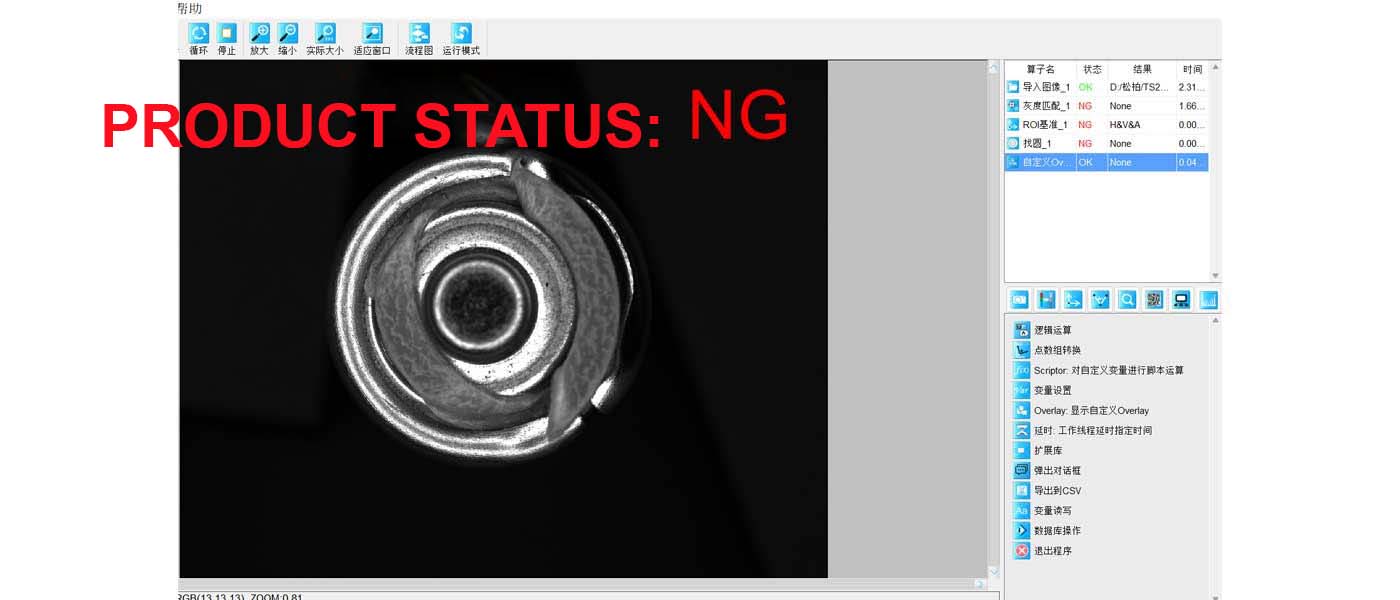

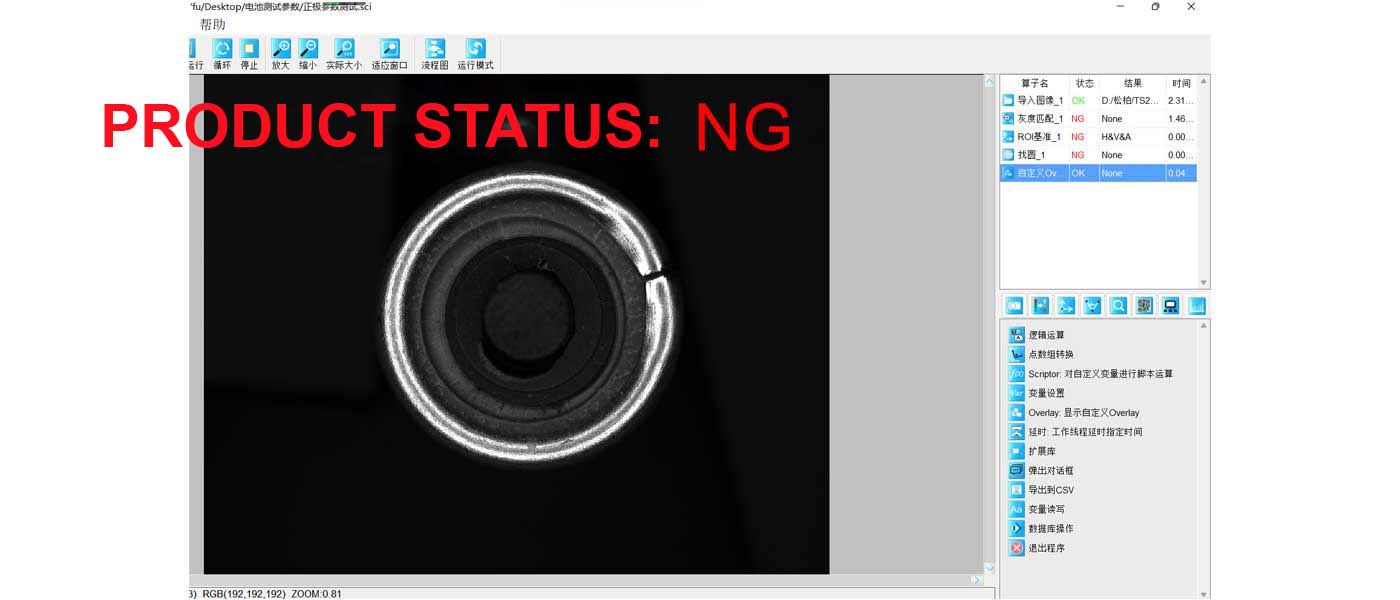

Software Effect

2. Positive Software Processing

Solution

Same principle as negative electrode treatment.

By grabbing the diameter of the insulating material.

It can not only judge the presence or absence of insulating materials.

It can also judge the degree of defect of insulating material.

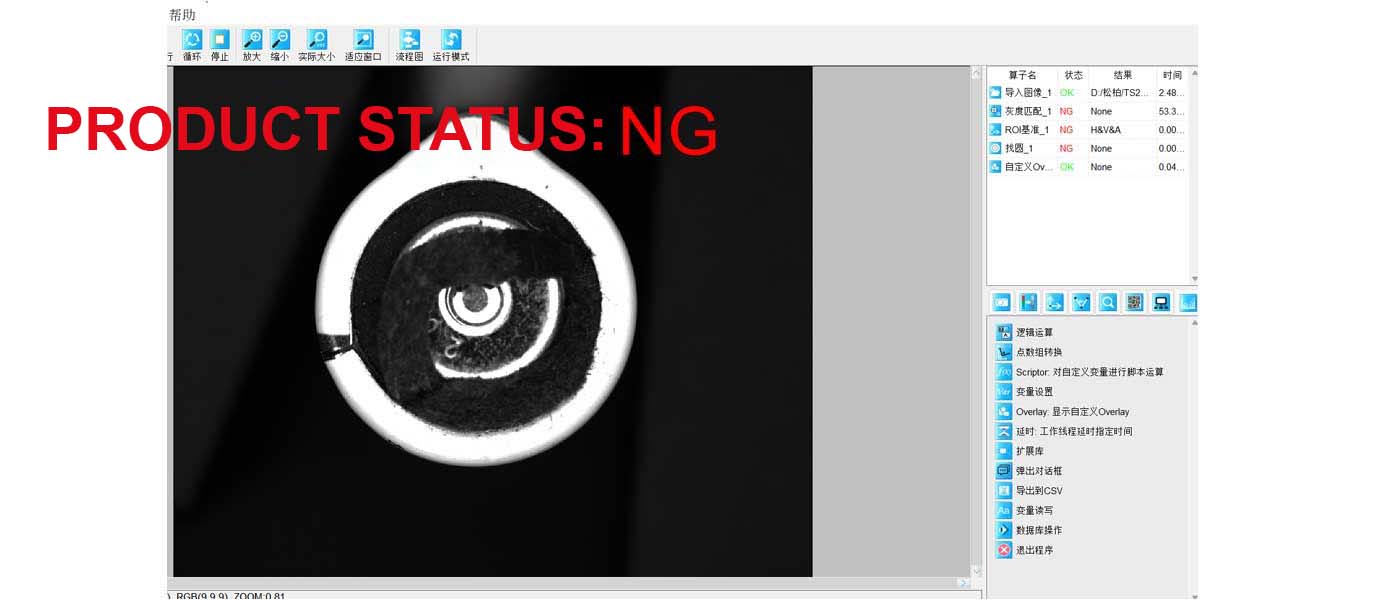

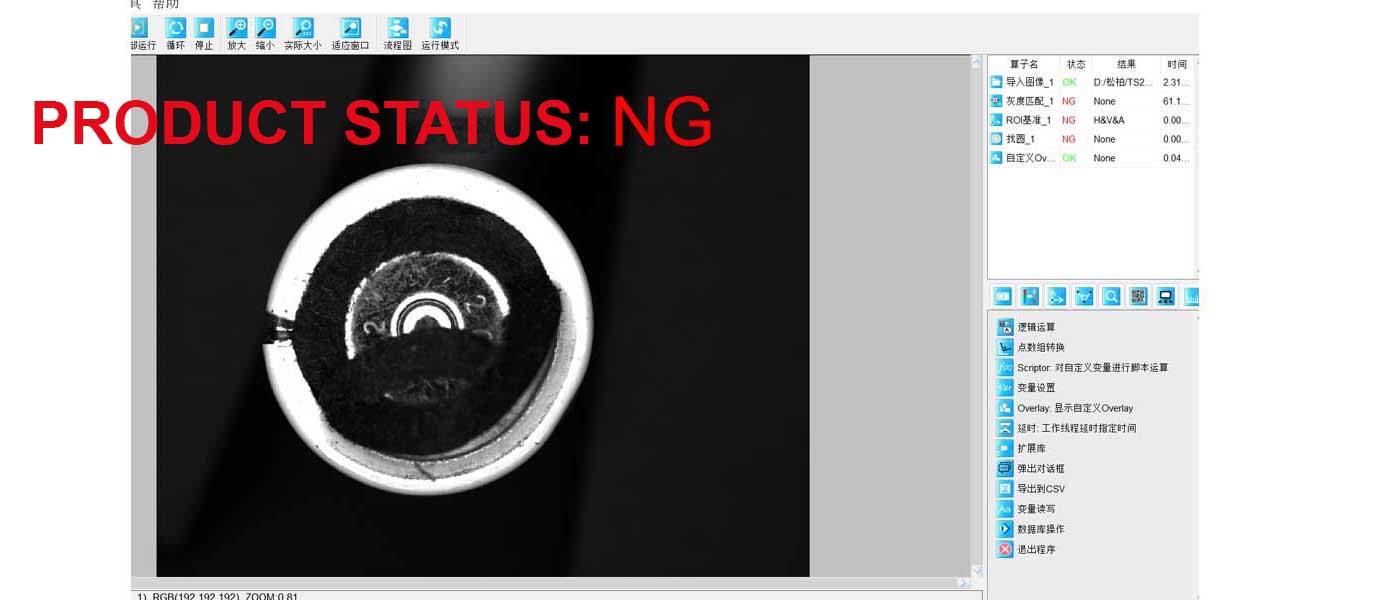

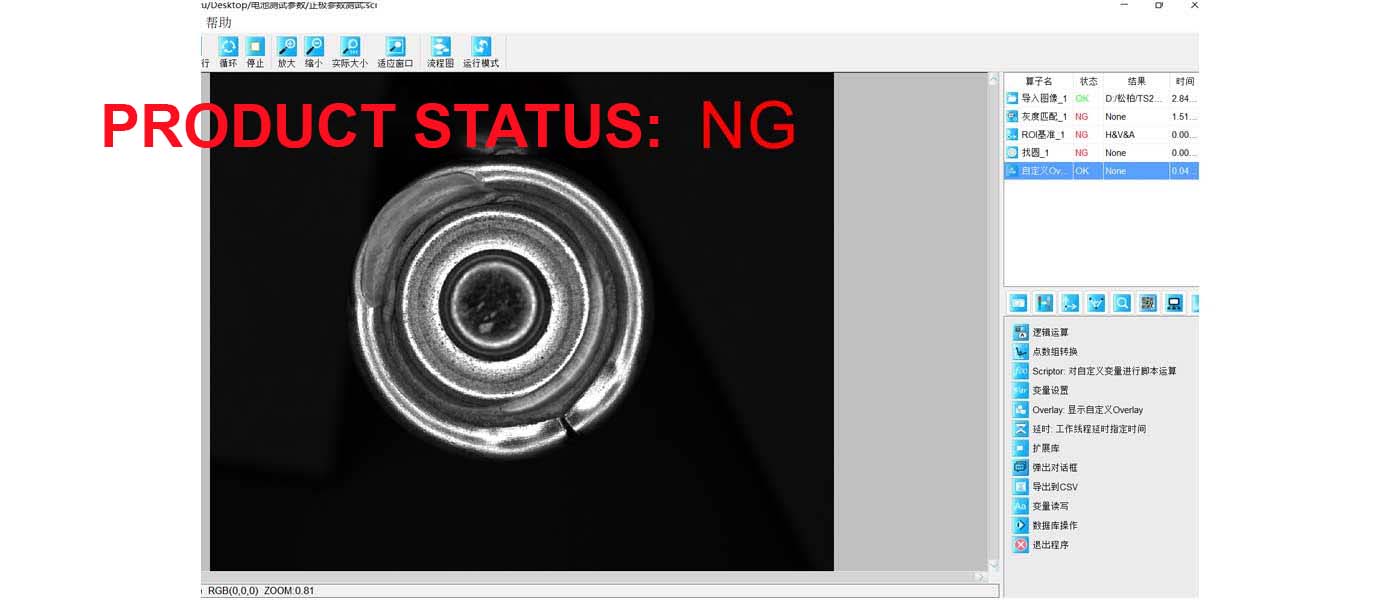

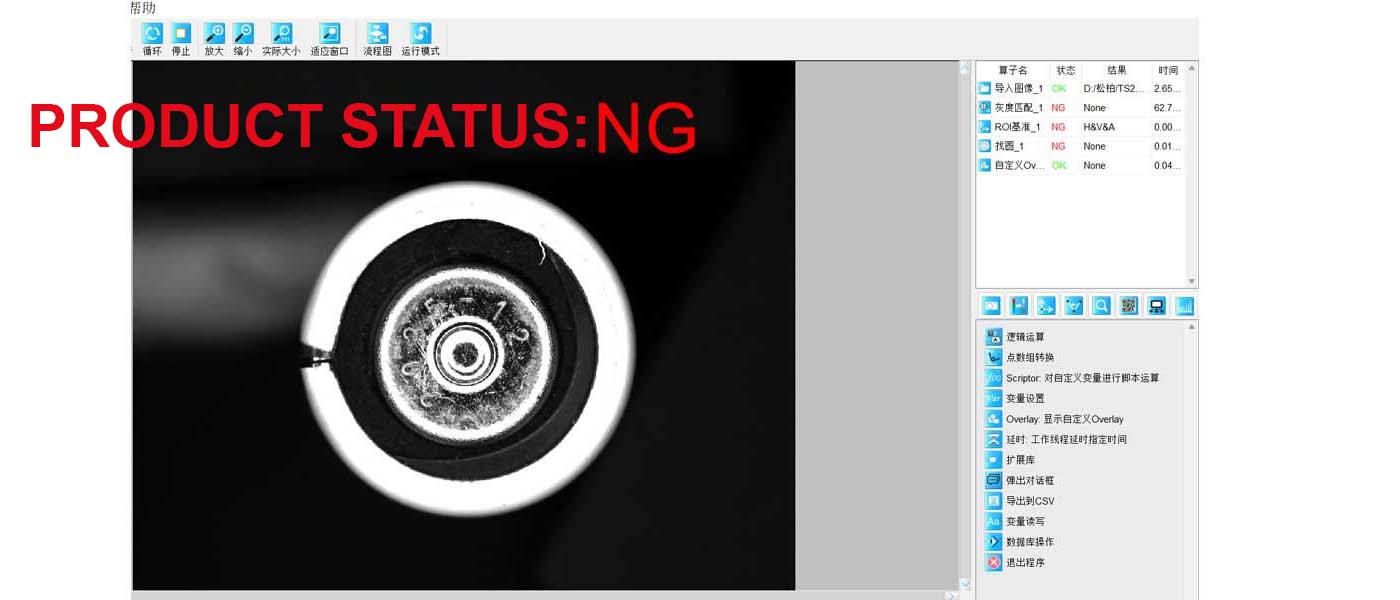

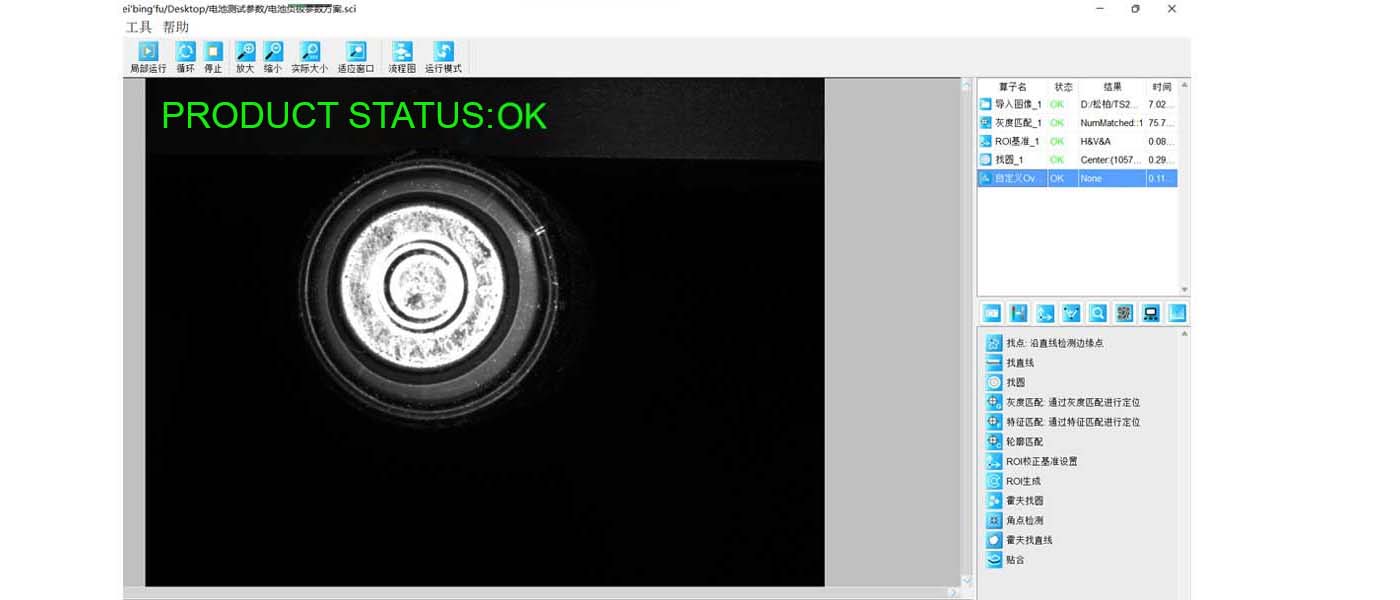

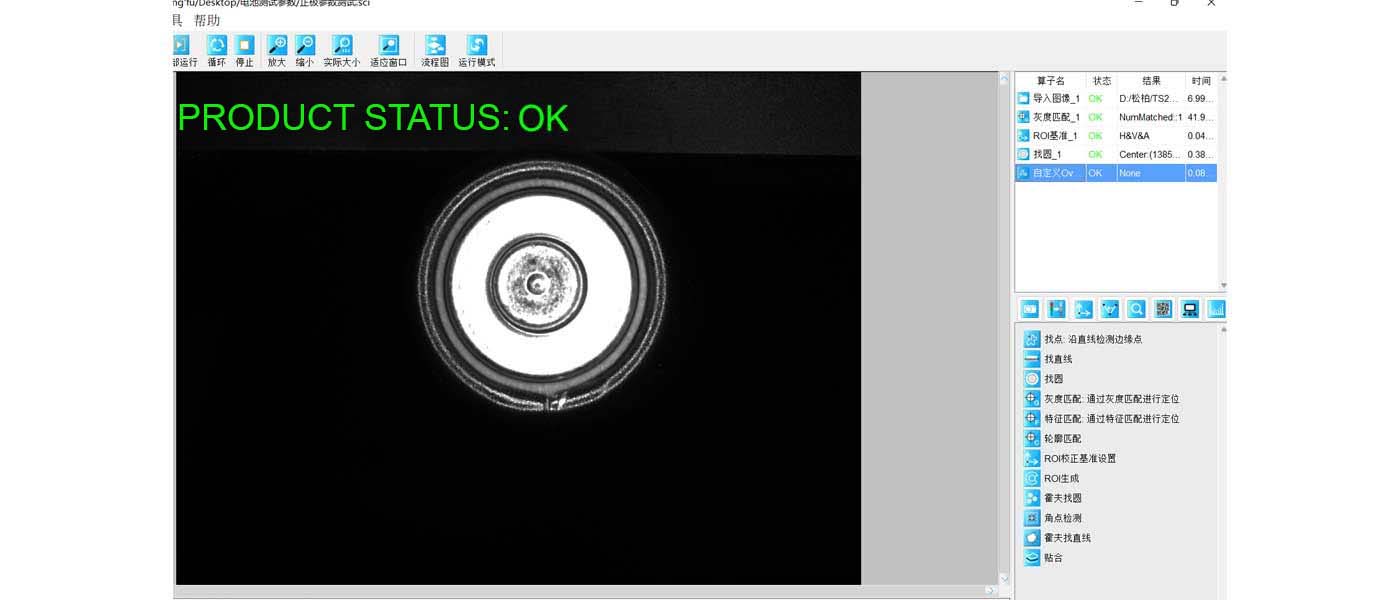

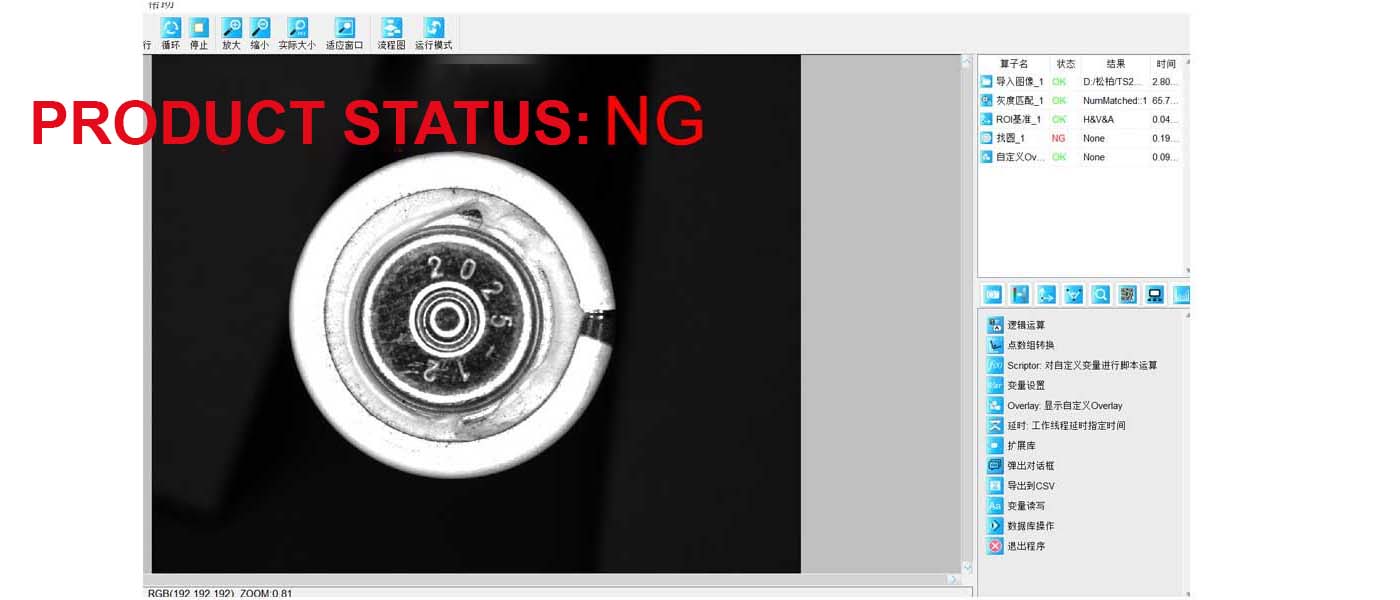

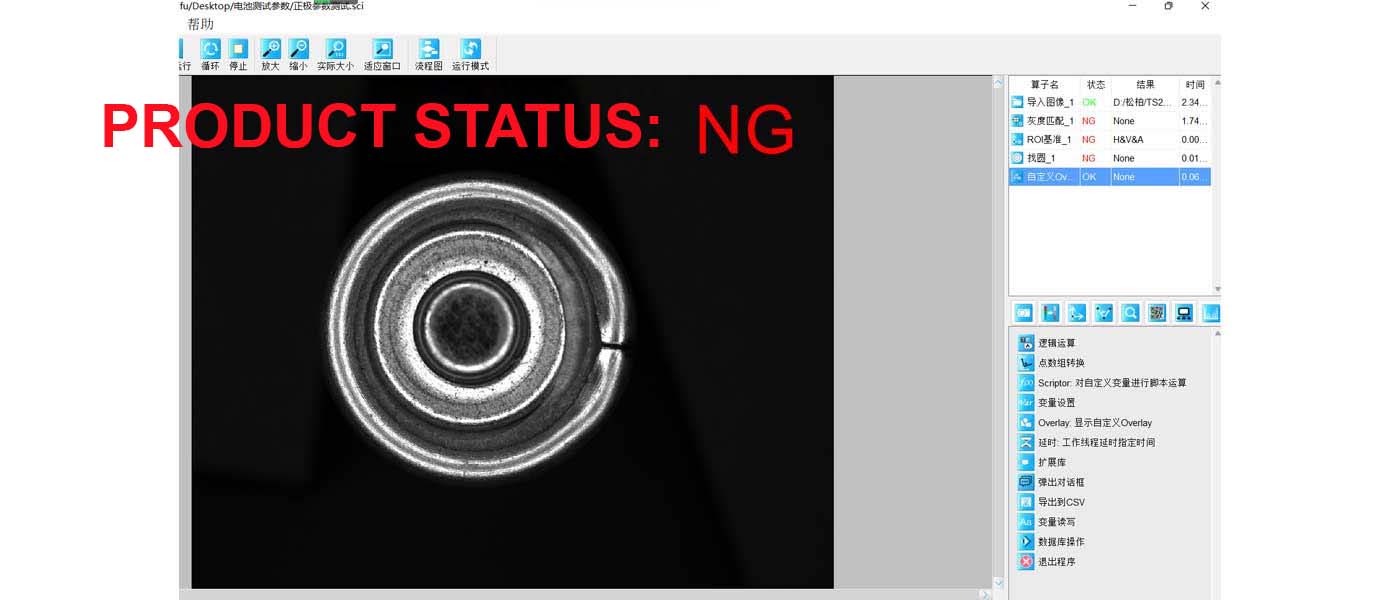

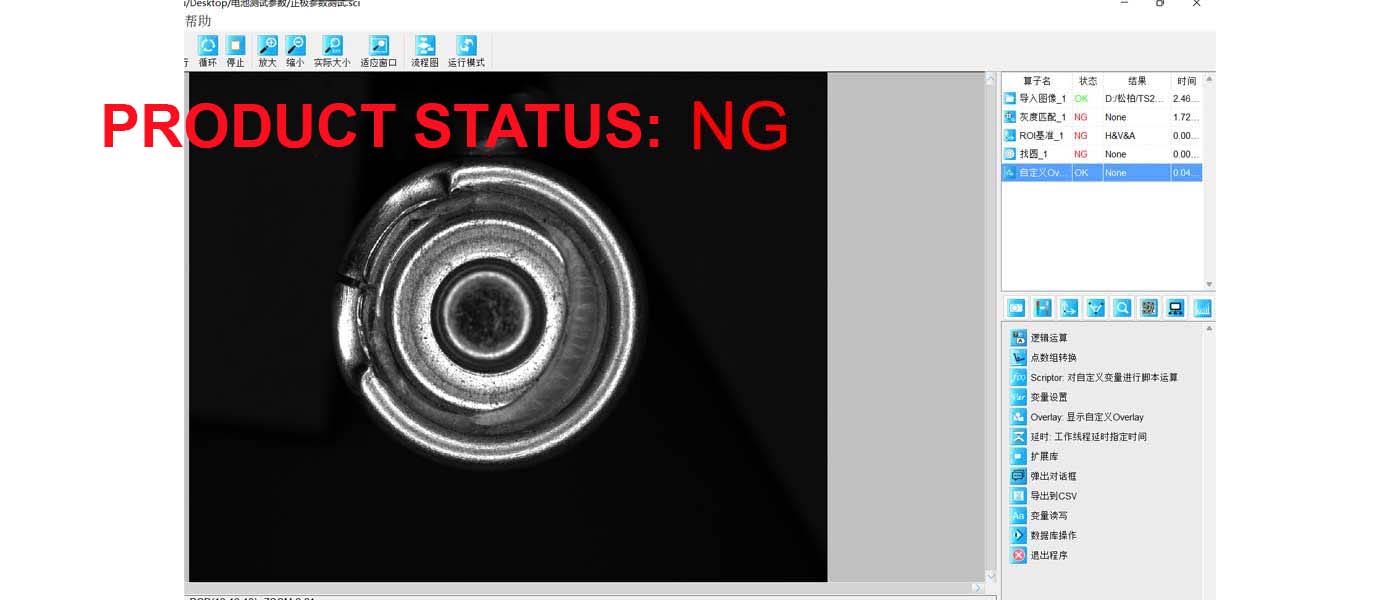

Software Effect

Software Department Management Effect

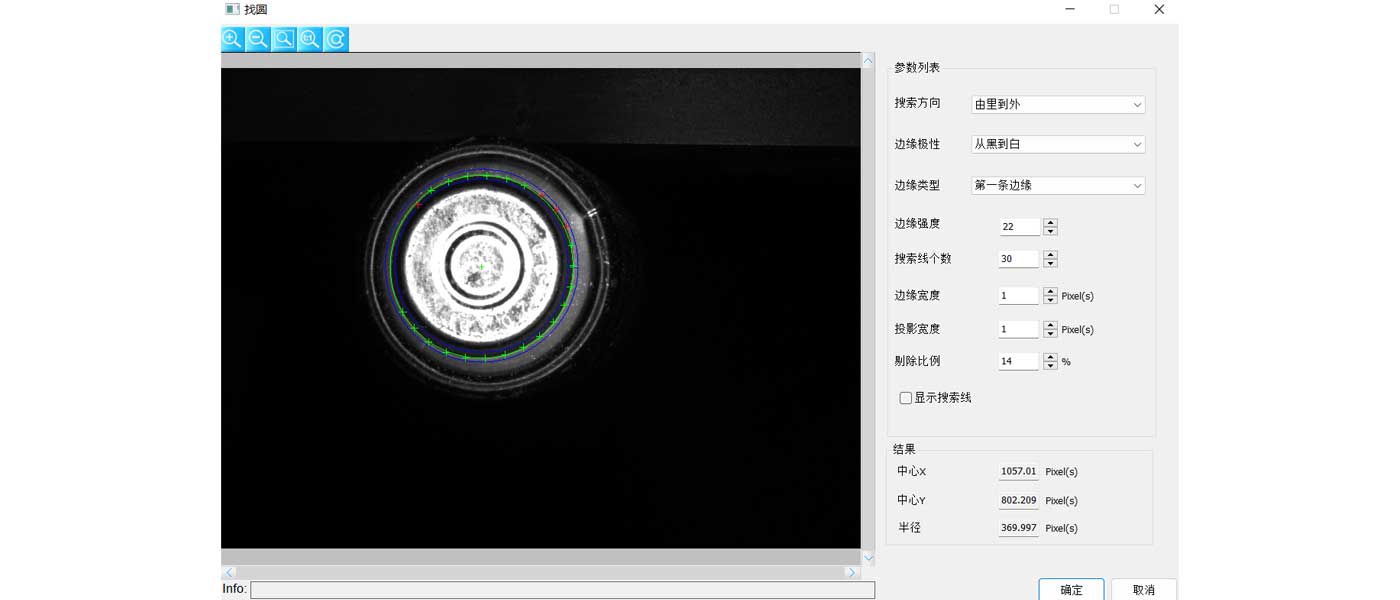

Test Chart

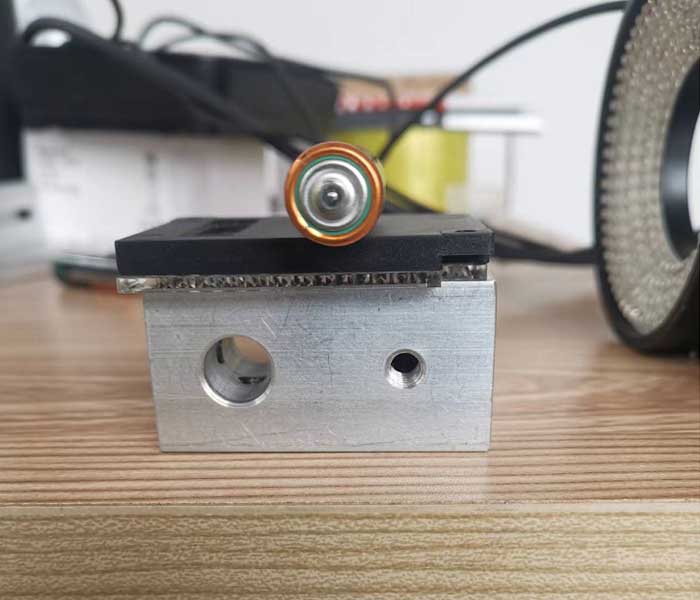

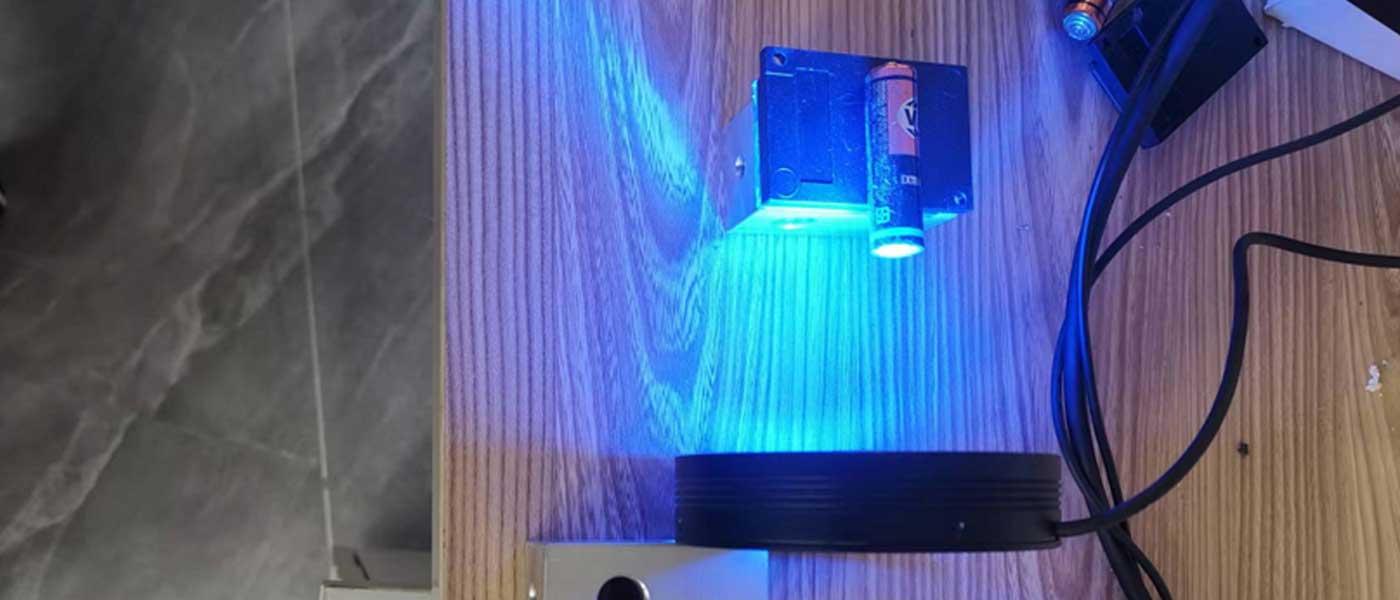

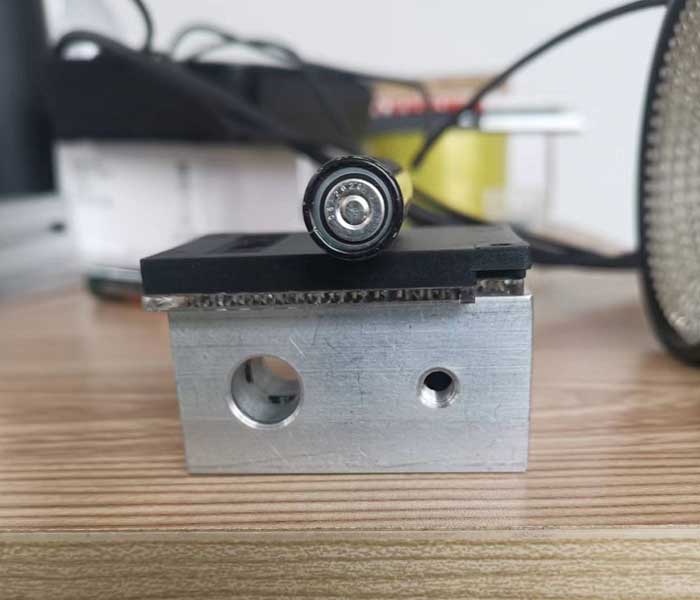

Physical Map

Test Conclusion

1. Sample lighting image acquisition is good.

2. The software is stable and feasible for the positive and negative treatment scheme.

3. The final specific plan implementation is determined to meet the customer’s production requirements.
